HEAVY EQUIPMENT /MIDI EXCAVATOR

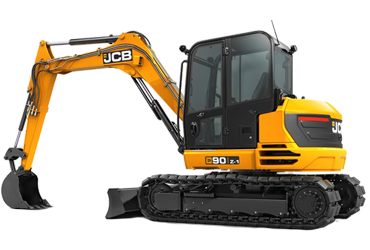

90Z-1
Developed in direct response to our customers’ needs, the JCB Midi Excavator series features superior performance, versatility and productivity by the bucketload.

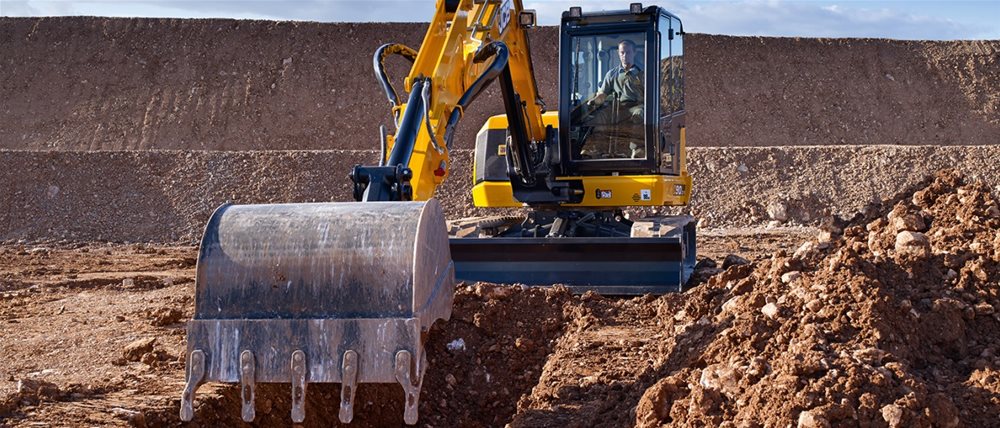

With build quality, power, efficiency, comfort, safety and serviceability in abundance, the new generation JCB 90Z-1 midi excavator is ready to provide ultimate productivity on any job.
Please visit our Catalog page under Parts & Services for the full product specifications.
Built for productivity
- Cleaner and powerful performance by JCB 90Z-1 with its JCB Diesel by Kohler Stage IIIB/Tier 4 final-compliant engine. With the Diesel Oxidation Catalyst, turbocharger and intercooler, the excavator can increase its power to 55kW at just 2200rpm and 305Nm of torque
- Class leading tearout force and tracking speed with its powerful JCB Diesel by Kohler Stage IIIB/Tier 4 final-compliant engine
- Added fuel efficiency with JCB patented “near zero pressure return line circuit” design. This allows the hydraulic pump can start work without having to overcome a very high pressure.
- Compatible with a wide range of hydraulic attachment with JCB 90Z-1’s twin auxiliary lines which generate both high and low hydraulic flows
Safety
-
Easier levelling and backfilling work even on inclines and uneven terrain with the optional 4-way dozer combined with the dozer float function
-
Prevent unintended movement with JCB’s safety lever lock which fully isolates hydraulic functions
| Weight | ||
| Operating weight | Metric tons | 8.6 |
| Operating weight | Kg | 8607 |
| Engine | ||
| Engine make | Kohler | |
| Engine model | Stage IIIB / Tier 4 Final KDI 2504 TCR | |
| Gross power | kW | 55 |
| Gross power | hp | 73.8 |
| Performance | ||
| Max dig height | mm | 7181 |
| Max dig depth | mm | 4153 |
| Max dig reach | mm | 7542 |
| Max dump height | mm | 5320 |
| Boom swing, right/left | Degrees | 60° / 55° |
| Max bucket tearout | kN | 57.1 |
| Max dipper tearout | kN | 42.3 |
| Dimensions | ||
| Transport length | mm | 6585 |
| Transport height | mm | 2706 |
| Overall width | mm | 2300 |
| Length of track on ground | mm | 2325 |
| Ground Clearance | mm | 350 |
